3D Graphics Software Renderer

My Summer 2019 Software Engineering Internship Project at AMD

Utilized: C programming, 3D graphics algorithms

A simplified version of a 3D graphics API like OpenGL, with some 3D modeling application functionalities. Designed and built during my summer internship at AMD under the mentorship of Mac 3D Graphics Driver Director Chris Bentley.

Different Program Modes and How to Run Them

To avoid code duplication while separating features with different core functionalities, I created three main program modes: BASIC, SCENE, and IMAGE PROCESSING mode.

To make things easier (no pun intended), I included a make-file in the top-level directory.

Unfortunately, I have only gotten the program to compile and run properly on Mac OS machines, but I hope to extend the program to different platforms in the future.

After you cd into the 3d-renderer directory:

BASIC mode:

Use to test 3D rendering techniques on a single object at a time.
make run-basic

SCENE mode:

Use to test 3D rendering techniques and modeling application features on multi-object scenes.
make run-scene file="scenes/<file-name">

IMAGE PROCESSING mode:

Use to run various image processing algorithms on an image.
make run-image

Implemented Features

Basic Features

frame and filled triangle modes
alpha blending
depth testing
texture mapping
cube mapping
bump mapping
frustum culling
triangle clipping

Rendering Optimizations

deferred rendering
backface culling

Additional Visual Effects

fog
depth of field
post processing

3D Modeling Features

scene files
mouse IO
object manipulators
visible axes and bounding boxes for editing
camera movement

Some Screenshots

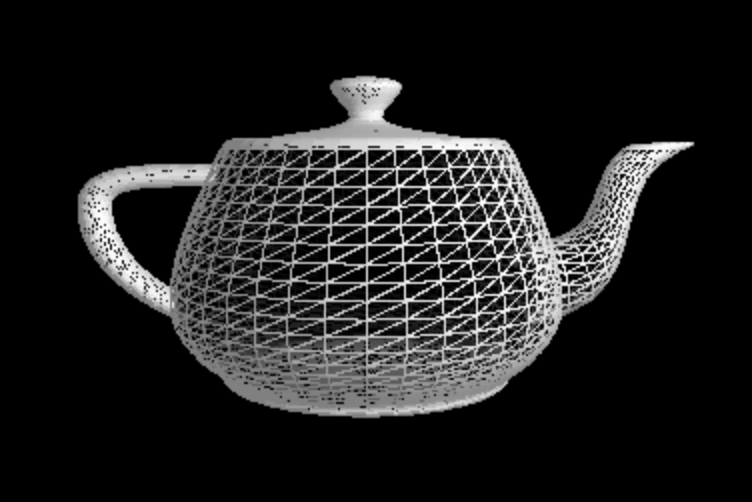

Image of teapot frame
Teapot frame

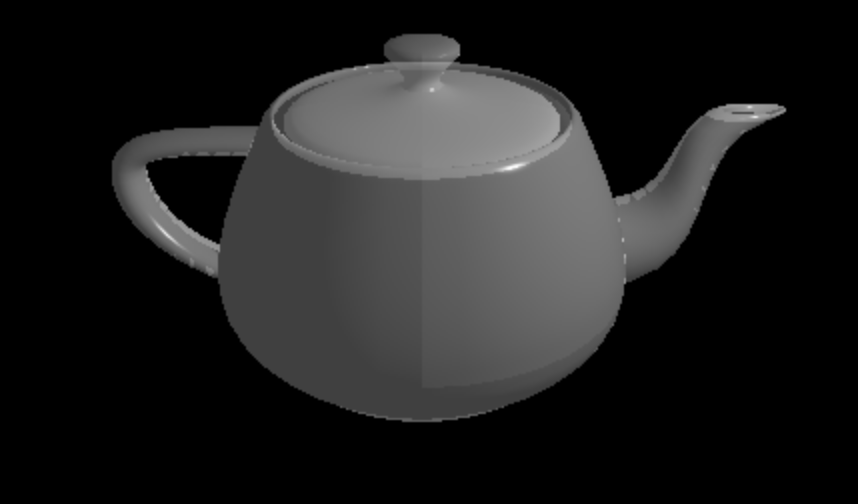

Image of alpha-blended teapot
Teapot with alpha blending enabled

Texture Mapping

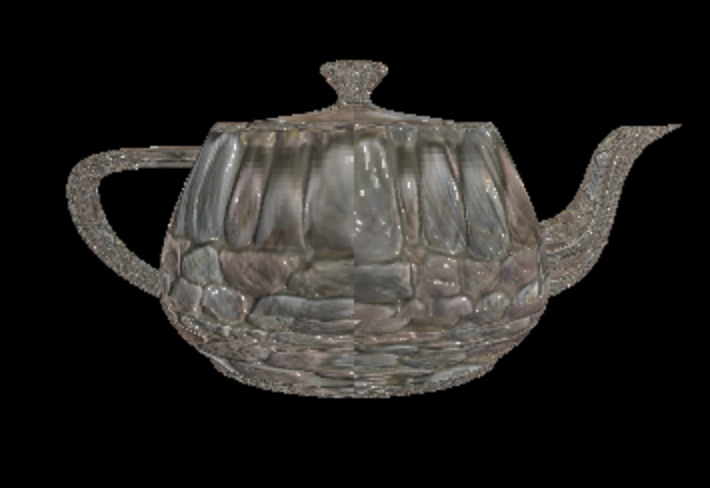

Image of bump-mapped teapot
Bump mapping

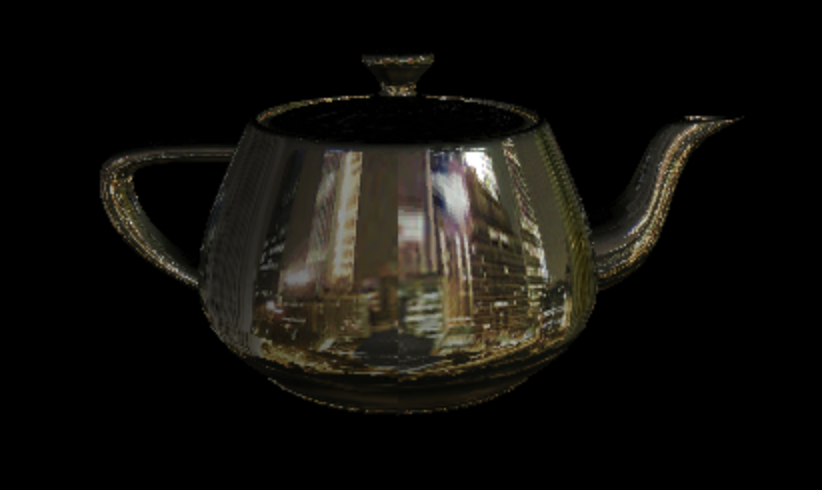

Image of cube-mapped teapot
Cube mapping

Shading

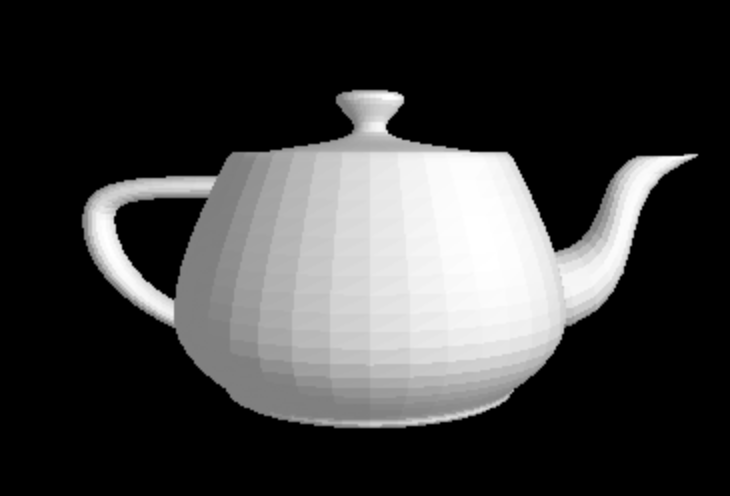

Image of teapot with flat shading
Flat shading

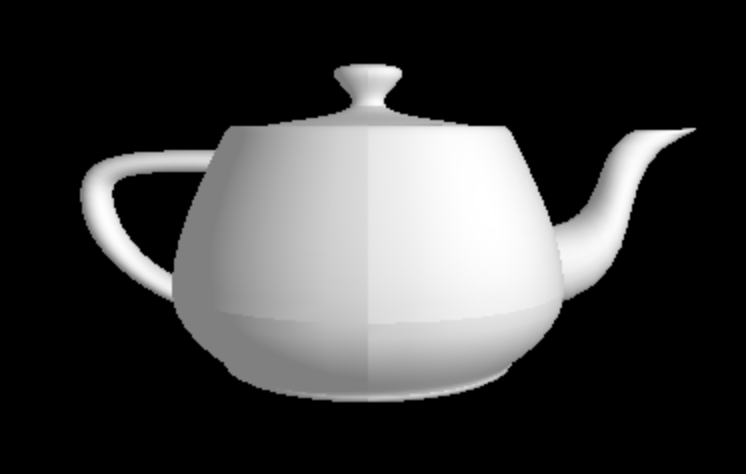

Image of teapot with phong shading
Phong shading

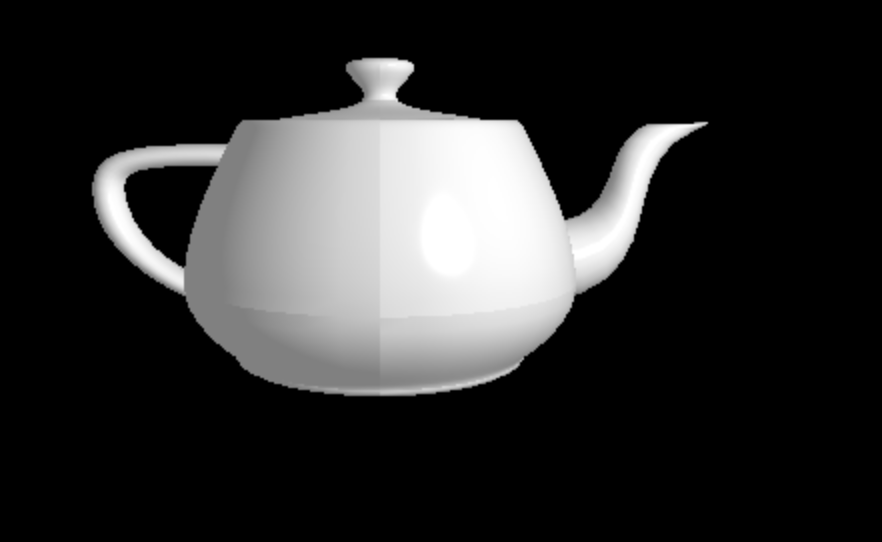

Image of teapot with phong shading with specular highlights
Phong shading with specular highlights

Post Processing

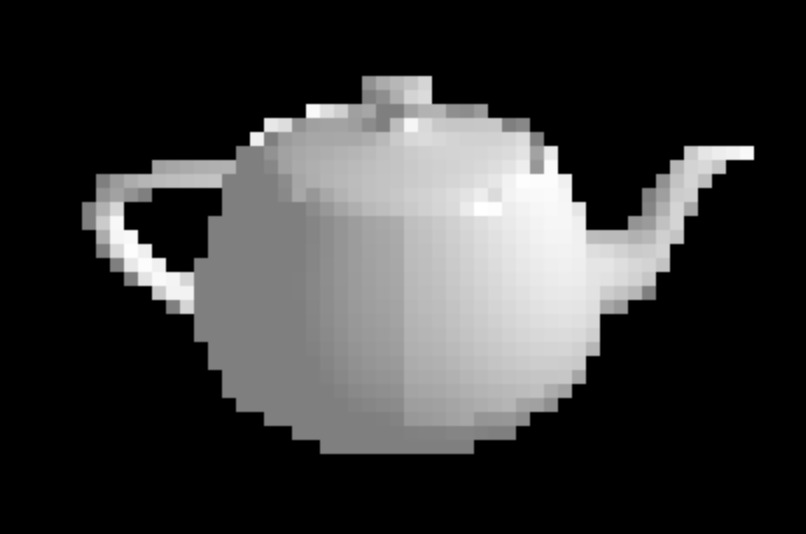

Image of teapot frame with post-processing pixelation effect
Pixelation (“Lincoln”) image processing effect

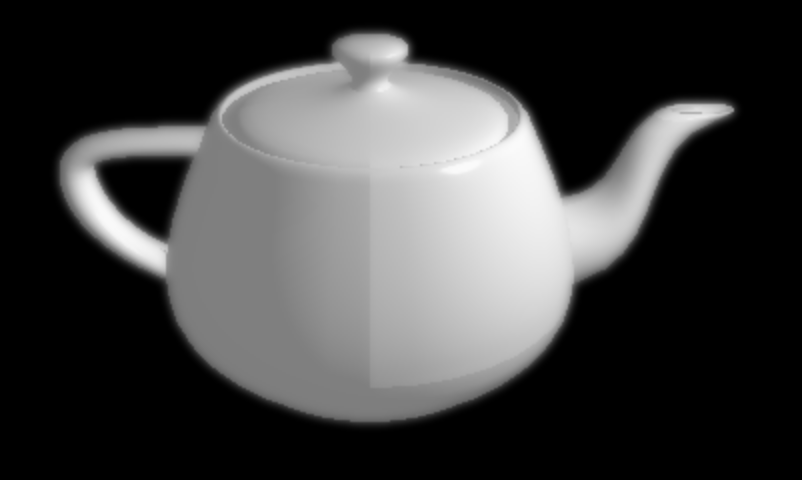

Image of teapot with depth of field post processing
Depth of field post processing

TODO:

Prune the OpenGL functionalities used to merge 3D software rendering with OpenGL calls.
Add high level descriptions of the different techniques implemented
Recap on lessons learned
Make program cross-platform
